BlueComfort Premium
Cooling and heating in one system
Most Webasto air-conditioning systems can also heat via a reversing circuit. However, if the temperature of the sea water is below six degrees Celsius, the heating circuit is ineffective. A water heater integrated into the system provides independent heating in any environment and at any time of year.
BlueComfort Premium from Webasto combines an air-conditioning system and a diesel-powered heater on board in a centrally controllable system. The DeLuxe version allows the additional integration of a water boiler as well as additional fan blowers and radiators.
Benefits of BlueComfort Premium
Product details
Product specifications

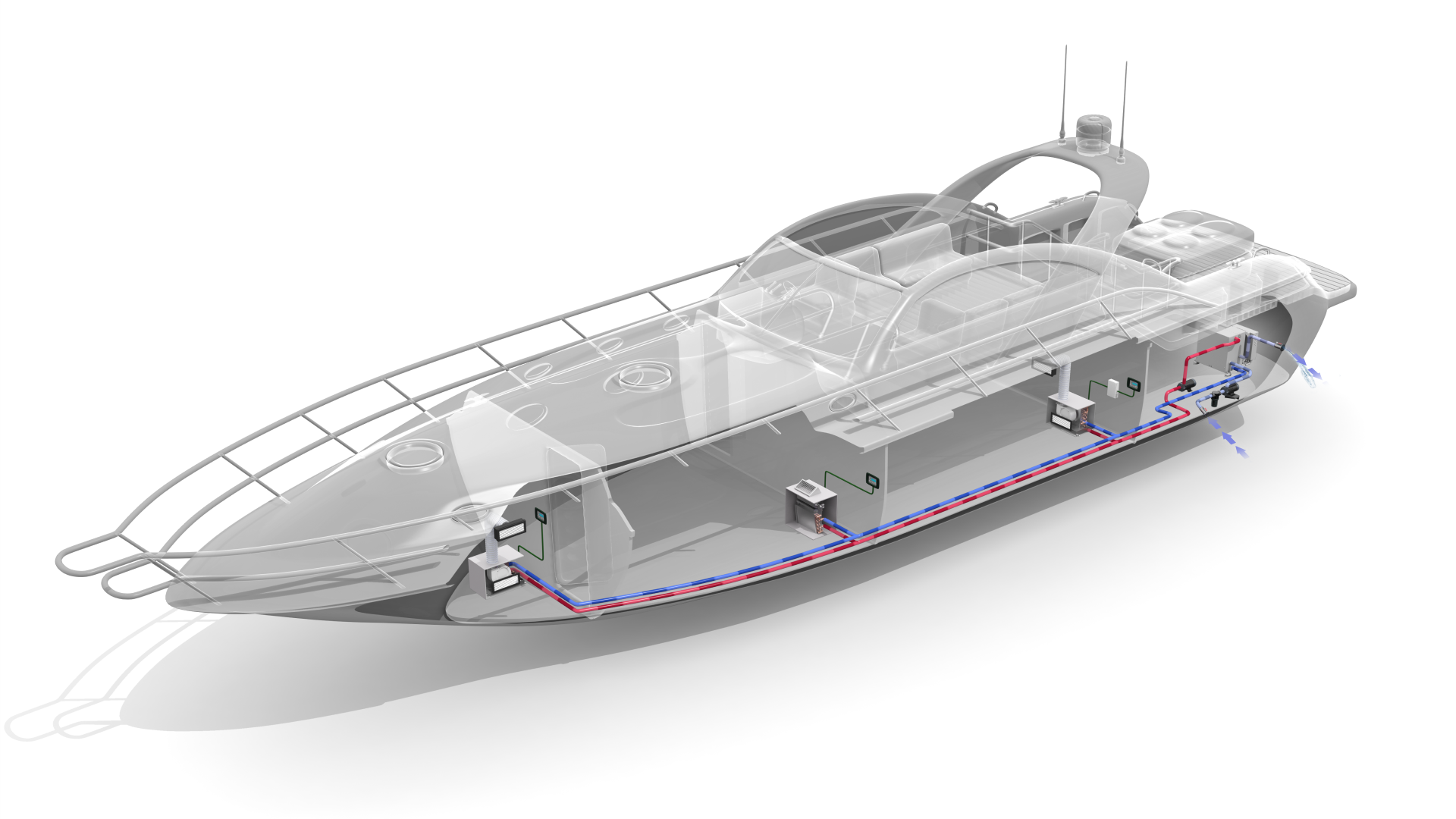

BlueComfort Premium is a modular system that is individually composed of a chiller air conditioning unit and a water heater as well as a control element and components for the water circuits.
Model overview
- Basis
- DeLuxe
Downloads
| Model overview | Thermo Top Eveo 4 | Thermo Top Evo 5 | Thermo Top Evo 5+* | |||
|---|---|---|---|---|---|---|
| Diesel | Gasoline | Diesel | Gasoline | Diesel | Gasoline | |
| ECE approval number ECE R12 (heating) | E1 00 0258 | E1 00 0258 | E1 00 0258 | |||
ECE approval number ECE R10 | E1 04 5627 | E1 04 5627 | E1 04 5627 | |||
| Heating capacity, part load/ full load (kW) | 2.5/4.0 | 2.8/4.0 | 2.5/5.0 | 2.8/5.0 | 2.5/5.0 | 2.8/5.0 |
| Fuel consumption, part load / full load (l/h) +/- 10% | 0.31/0.49 | 0.39/0.56 | 0.31/0.62 | 0.39/0.70 | 0.31/0.62 | 0.39/0.70 |
| Nominal voltage | 12 | 12 | 12 | |||
| Rated power consumion without coolant pump, part load/ful l load (W) without vehicle’s fan, +/- 10% | 12/21 | 15/21 | 12/33 | 15/33 | 12/33 | 15/33 |
| Fuels | Diesel DIN EN 590,Paraffinic fuel (HVO / GTL)DIN EN 15940 | E0-E10 EN 228, E85 DIN 51625 | Diesel DIN EN 590,Paraffinic fuel (HVO / GTL)DIN EN 15940 | E0-E10 EN 228, E85 DIN 51625 | Diesel DIN EN 590,Paraffinic fuel (HVO / GTL)DIN EN 15940 | E0-E10 EN 228, E85 DIN 51625 |
| Operating temperature range (°C) | -40 to +60 | |||||
| Dimensions L x W x H (mm) | 218 x 91 x 147 | 218 x 91 x 147 | 218 x 91 x 147 | |||
| Weight (kg) | 2.1 | 2.1 | 2.1 | |||
| Coolant pump U4847 Econ | - | |||||
| Volume flow against 0.14 bar (l/h) | 500 | |||||
| Dimensions L x W x H (mm) | 109x49x79 | |||||
| Weight (kg) | 0.3 | |||||
* More details can be found here
