Air Top Pro 25

Jump to section

From powerful to whisper-quiet – the new air heater

What makes the Air Top Pro 25 the perfect choice for camping vehicles, trucks, vans, buses, specialty vehicles, boats, construction, and agricultural machinery? It stands out with the widest heating output range in its class and a long service life. Whether it is a chilly autumn morning or a freezing winter day, in boost mode the Air Top Pro 25 heats the interior in very short time and maintains the individually desired temperature consistently thanks to its stepless heating power control.

Newly designed components - such as the heat exchanger, burner, and blower module - ensure maximum energy efficiency while reducing power consumption and noise levels. In the lower heating output range the Air Top Pro 25 operates whisper-quiet. The air heater can be installed both inside the vehicle and externally on the chassis. Available from mid-2026.

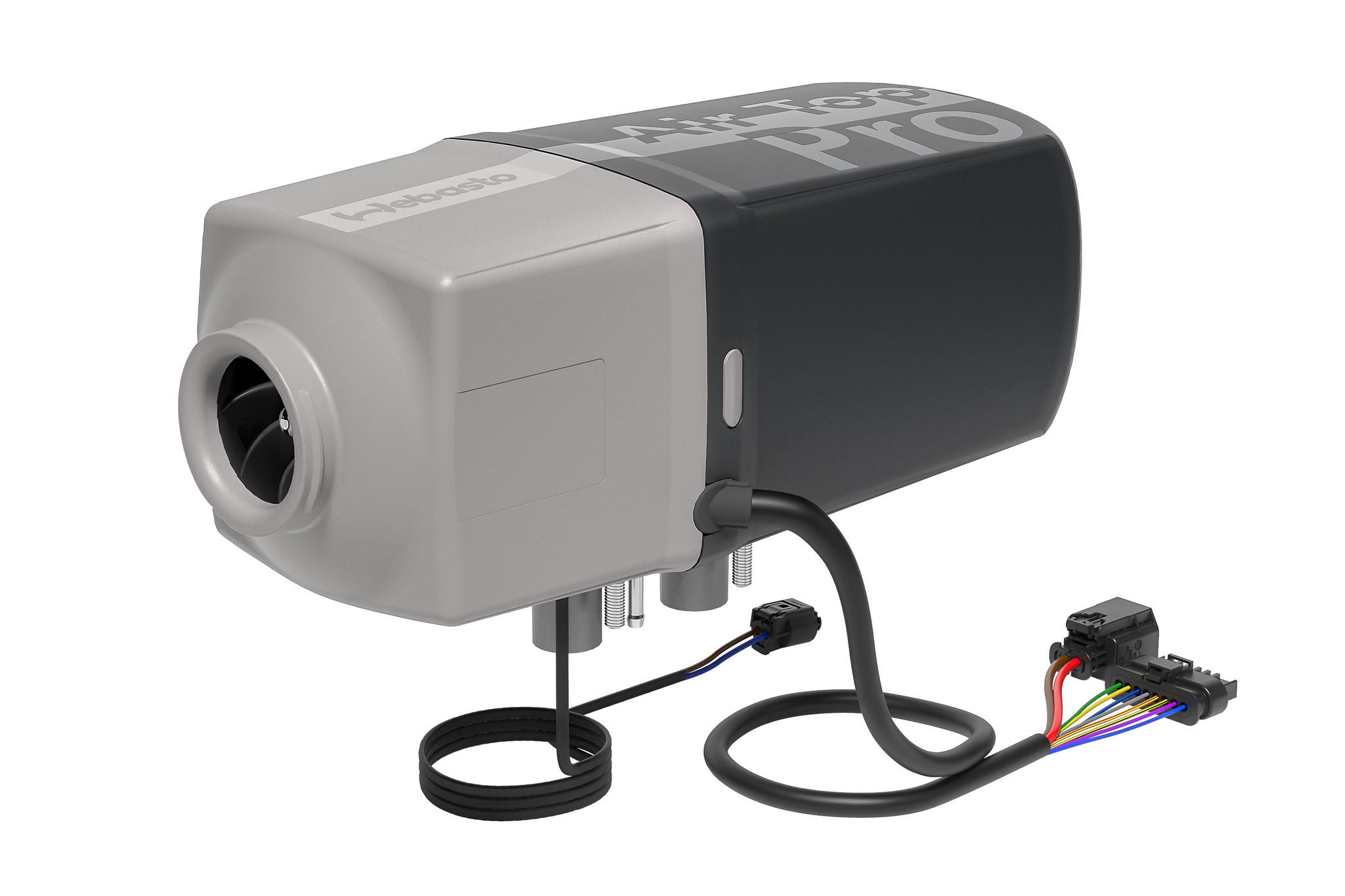

Front View of Air Top pro 25 with white Background

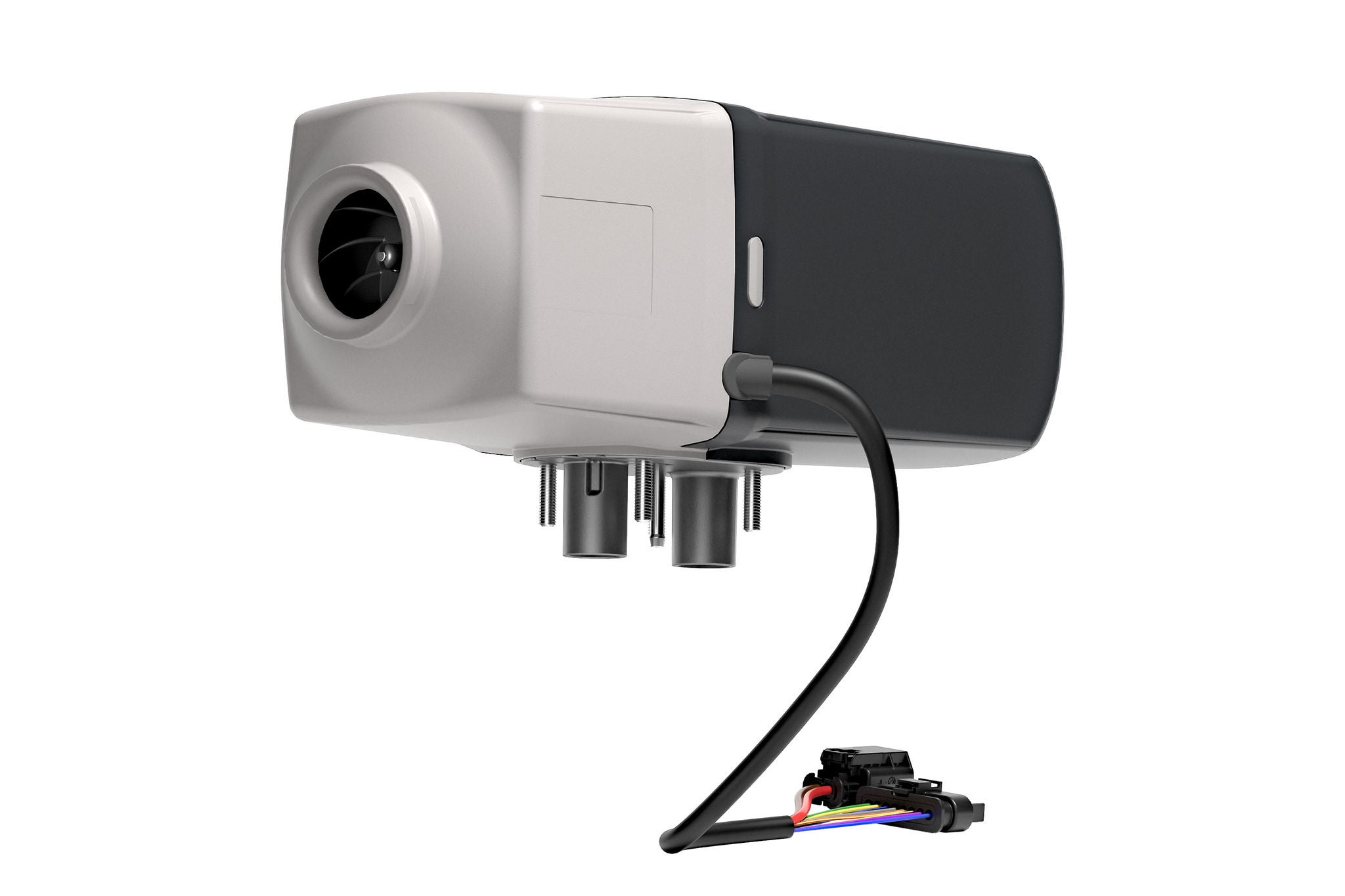

Side View of Air Top pro 25 with white Background

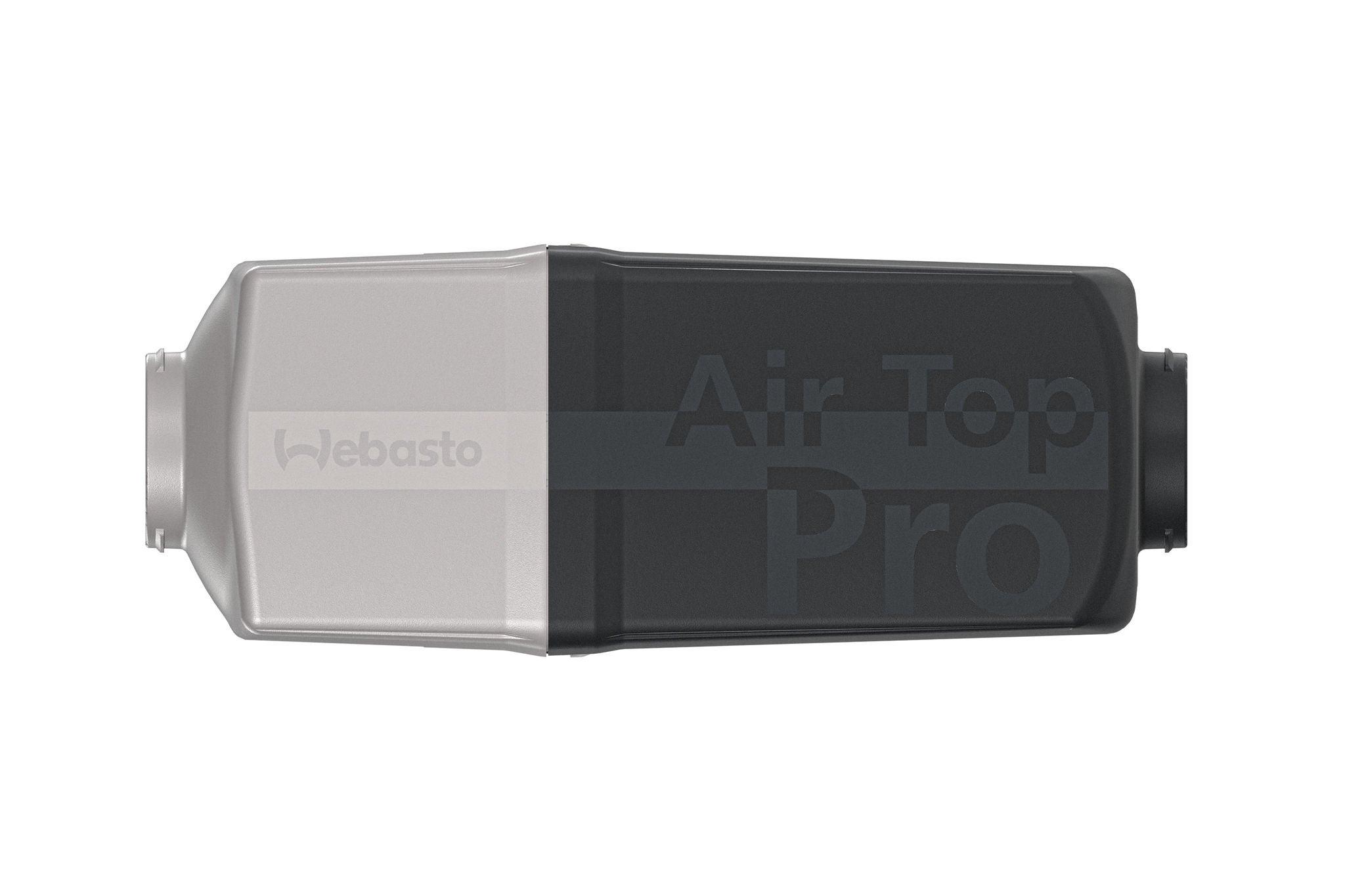

Top View of Air Top pro 25 with white Background

Air Top Pro 25 video
Air Top Pro 25 front
Air Top Pro 25 side
Air Top Pro 25 top

Benefits of Air Top Pro 25

Wide power range

With a heating output range from 0.7 to 2.5 kW in boost mode and reduced power consumption, the Air Top Pro 25 sets new standards for efficiency and versatility in its class.

Whisper-quiet comfort

Operating discreetly in continuous mode, the air heater creates a cozy indoor climate while the eco mode ensures a peaceful sleeping environment.

Unlimited warmth

Reaching new heights - the Air Top Pro 25 is altitude-ready up to 5,500 m and delivers maximum heating performance up to 3,000 m thanks to automatic altitude adjustment.

Versatile language talent

Whether it is CI, LIN, or CAN bus – the Air Top Pro 25 speaks many languages and can be controlled via the vehicle’s own control panel. Alternatively, the proven Webasto control elements are available.

Easy installation

Newly designed ‘plug & play’ wiring harnesses enable faster and error-free installation. Most of the accessory components can still be used.

Powerful heating performance

Fast warmth in extreme cold – in boost mode, the Air Top Pro 25 delivers instantly noticeable comfort with 2.5 kW of heating power.

Product details

Product specifications

Dimensions (L x W x H) in mm: 321 x 127 x 124
Weight: 2.95 kg
Rated voltage: Diesel: 12 or 24 V;
gasoline: 12V
Fuel: Diesel according to DIN EN 590; Paraffinic fuel (HVO/GTL) according to DIN EN 15940; Gasoline according to E0-E10 EN 228
Temperature range: -40 °C to +40 °C

Model overview

Air Top Pro 25 Diesel 12 V
Air Top Pro 25 Diesel 24 V
Air Top Pro 25 Gasoline 12 V

Downloads

Air Top Pro 25 - Datasheet

Size: 539 KB
Format: application/pdf

Download
