BlueCool S-Series
Compact, high-performance cooling units designed for easy installation and reliable comfort
The Webasto BlueCool S-Series offers efficient, self-contained air-conditioning units perfect for boats with up to three cabins. Available in seven sizes, these units provide powerful cooling with low power consumption, ensuring comfort even in tropical conditions. Featuring quiet operation, compact design, and integrated reverse cycle heating, the BlueCool S-Series is built for long-lasting durability. Each unit is mounted on a deep, stainless steel tray for enhanced stability and corrosion protection, making it the ideal marine climate control solution.

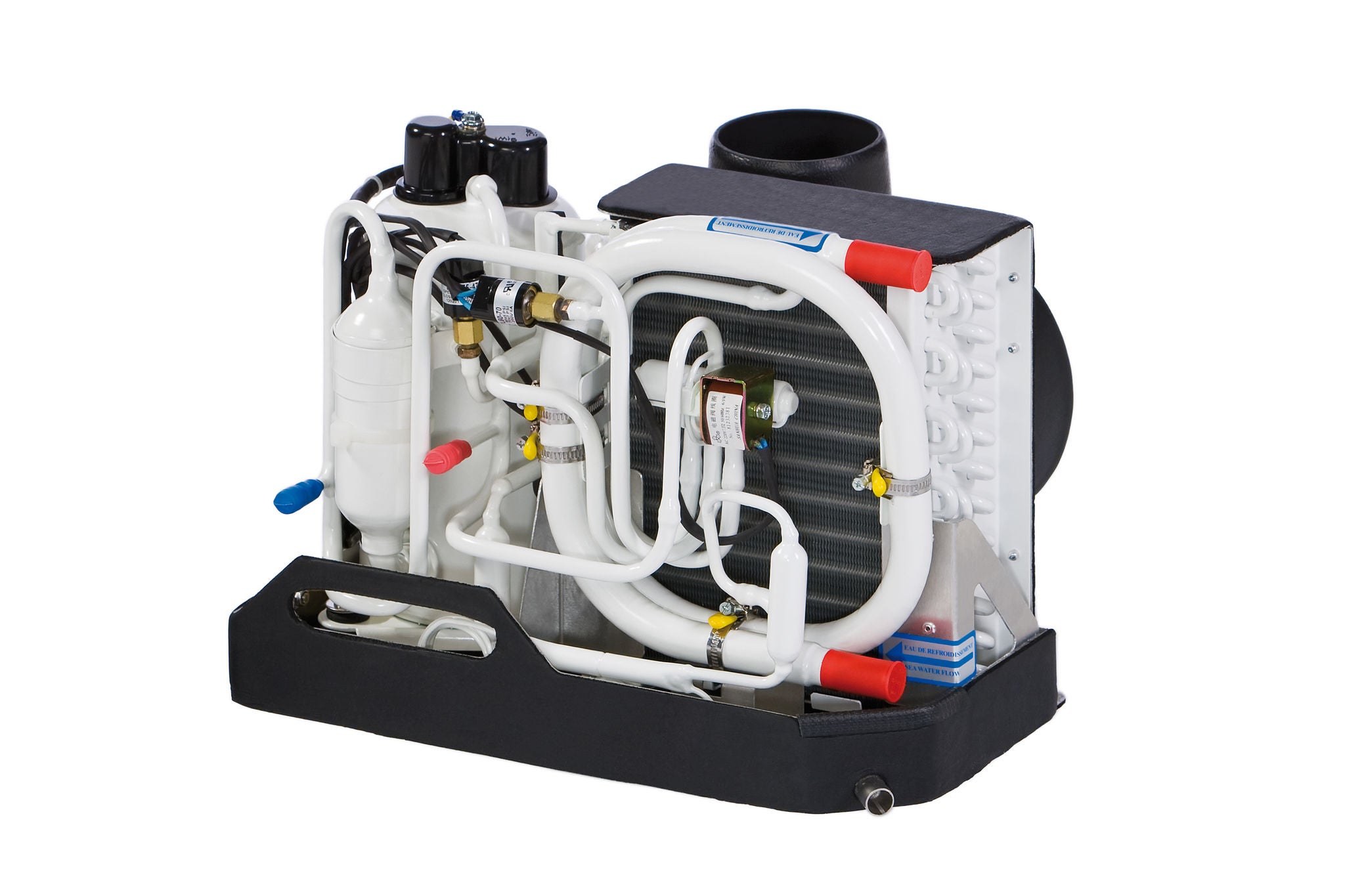

- BlueCool S-Series S8

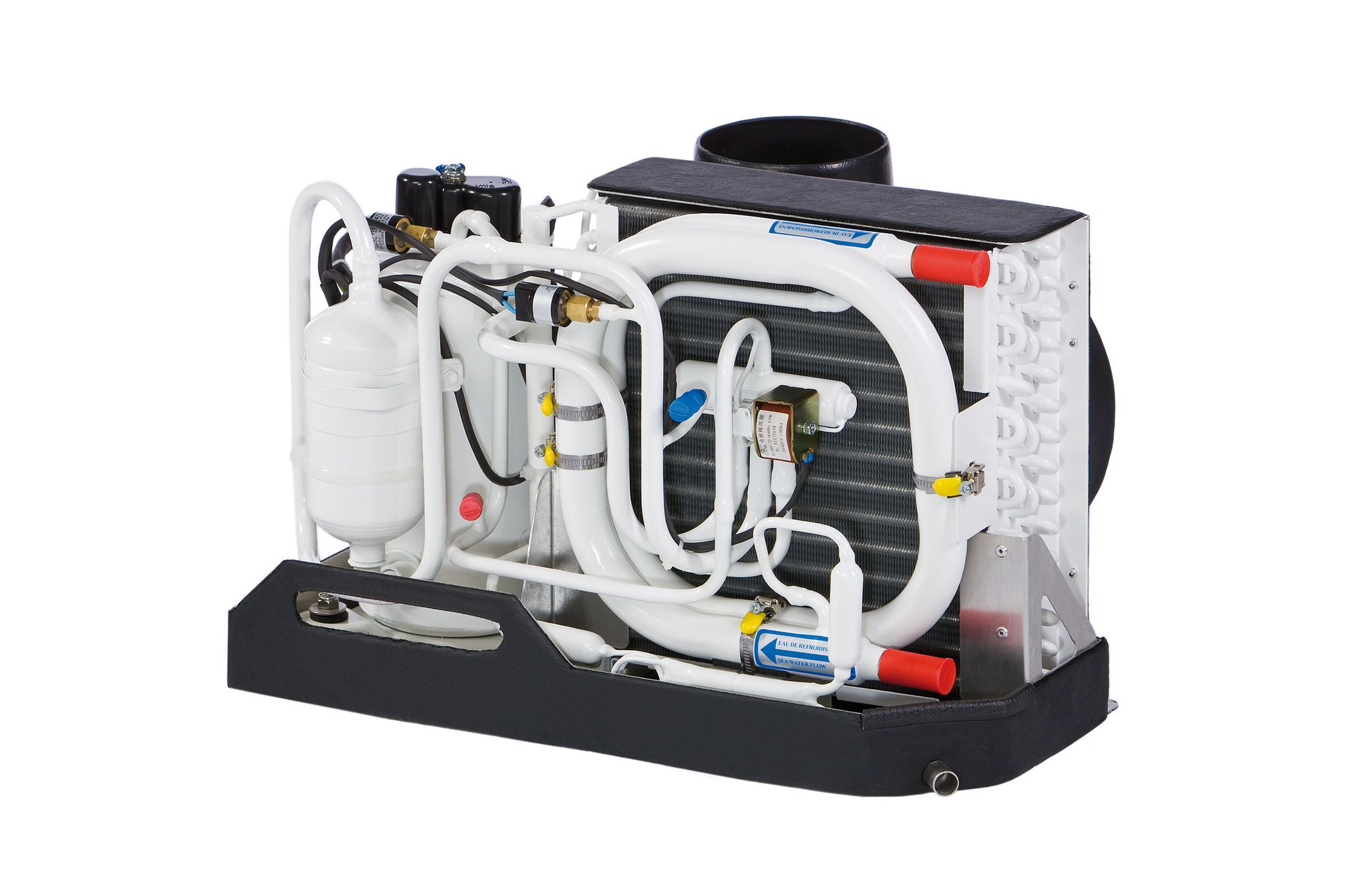

- BlueCool S-Series S13
Discover the advantages of the S-Series
Product details
Product specifications
BlueCool S-Series 115 V
Cooling capacity (BTU/h): 6,000 to 16,000
Voltage (V): 115
Current consumption, operation [A] 60Hz: 3.6 – 15.7 (varies by model)
Fan output, free-blowing [m³/h] (cfm): 275 (162) to 650 (382)
Supply air grille [cm²]: 150 to 390
Minimum thickness insulation air duct [mm] (inch): [4] (5/32”)
ø Sea water connection [mm] (inch): [19] (3/4”)
Dimensions L x W x H:
- 405 x 320 x 300 mm to 540 x 353 x 340 mm
- 16 x 12.6 x 11.8 in to 21.6 x 13.9 x 13.4 in
BlueCool S-Series 230 V
Cooling capacity (BTU/h / kW): 6,000 (1.8 kW) to 27,000 (7.9 kW)
Supply voltage: 230 V
Current draw running [A]: 2.0 – 10.5 (varies by model)
Fan output, free-blowing [m³/h] (cfm): 275 (162) to 2x550 (2x324)
Sea water connection: 3/4 in / 19 mm
Minimum sea water flow: 1.6 gal/min (6 l/min) to 5.5 gal/min (21 l/min)
Diameter air outlet: 4 in / 100 mm to 2 x 5 in / 125 mm
Dimensions L x W x H:
- 405 x 320 x 300 mm to 570 x 510 x 405 mm
- 16 x 12.6 x 11.8 in to 22.4 x 20 x 16 in
