Heating and hot water for compact camper vans

Hybrid 3/3E from Webasto provides simultaneous heating and hot water in smaller camper vans. A 2 kW Air Top 2000 STC air heater powered by diesel from the vehicle tank warms the interior, while a 1.35 kW Expanse gas or combined gas/electricity boiler (3E) heats the water for washing and showering. The appliances heat independently of each other so that their respective output is only available for heating or hot water preparation. This means that the heat is available extremely quickly. All appliances can be installed both underfloor and onboard.

Benefits of Hybrid 3/3E

Fast heat-up

Thanks to the power-boost function, Hybrid 3/3E immediately ensures a warm interior and hot water.

Continuous heat

Heating and hot water preparation are possible without interruption.

Hot water in winter

The water is warmed up even in the coldest winters.

Space and weight saving

As the heating system uses diesel instead of gas, the number of gas bottles on board can be reduced. This saves around 20 kg of payload and space.

Gas cylinder changes reduced

Hybrid 3/3E extends the service life of the gas cylinders so that they need to be replaced less frequently.

Product details

Product specifications



  • Dimensions cabin air heater (L x W x H) in mm: 310 x 120 x 118
  • Dimensions water heater (L x W x H) in mm: 522 x 262 x 180
  • Weight of cabin air heater: 2.6 kg
  • Weight of water heater: 4.0 - 4.5 kg
  • Heating power cabin air heater: up to 2 kW
  • Heating power water heater: 1.35 kW
  • Water capacity: 8 l
  • Rated voltage: 12 V
  • Fuel: diesel, gas, electricity

Model overview

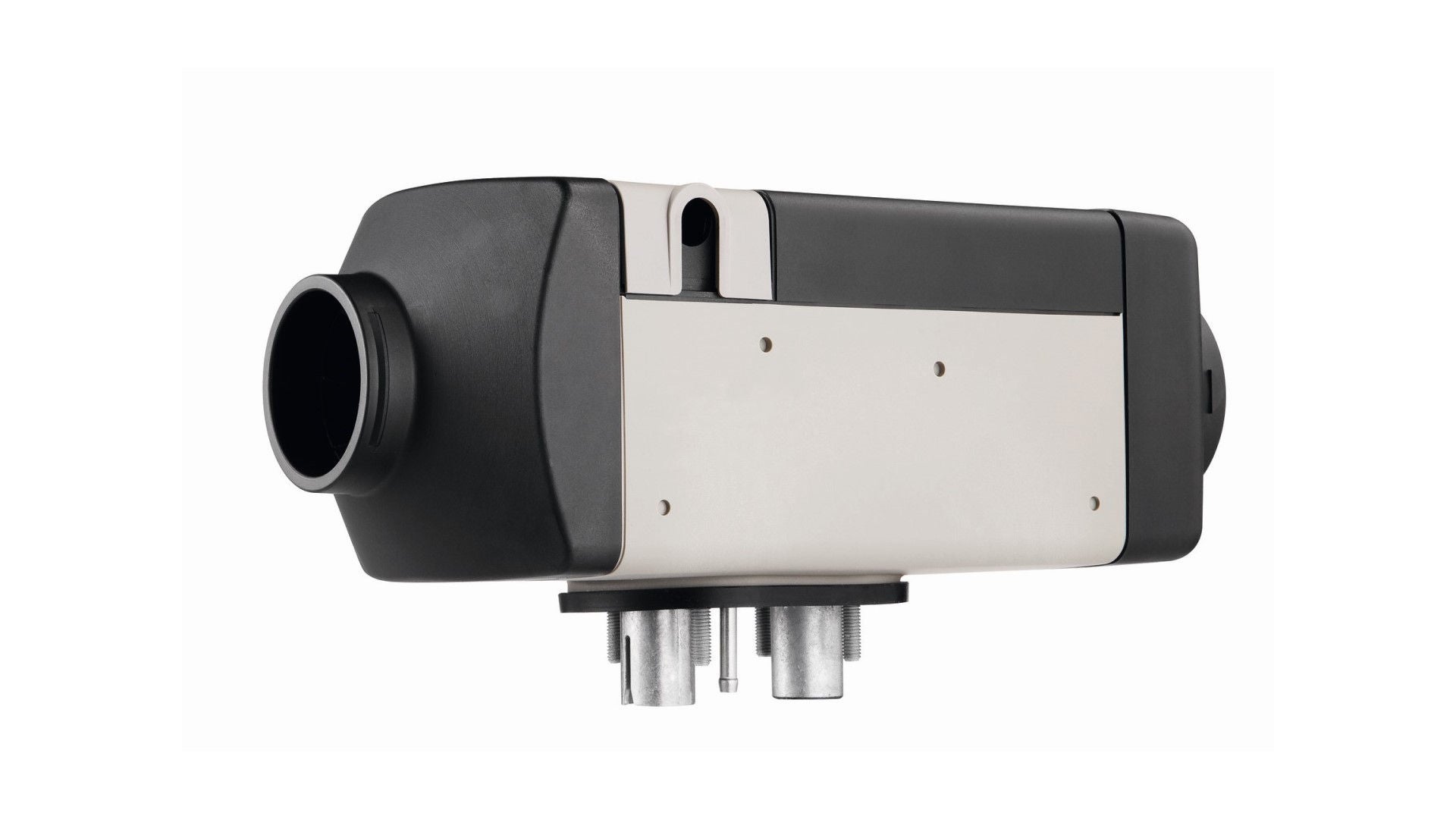

  • Air Top 2000 STC Diesel 12 V Basic
  • Air Top 2000 STC D 12 V RV Standard
  • Air Top 2000 STC D 12 V RV Comfort

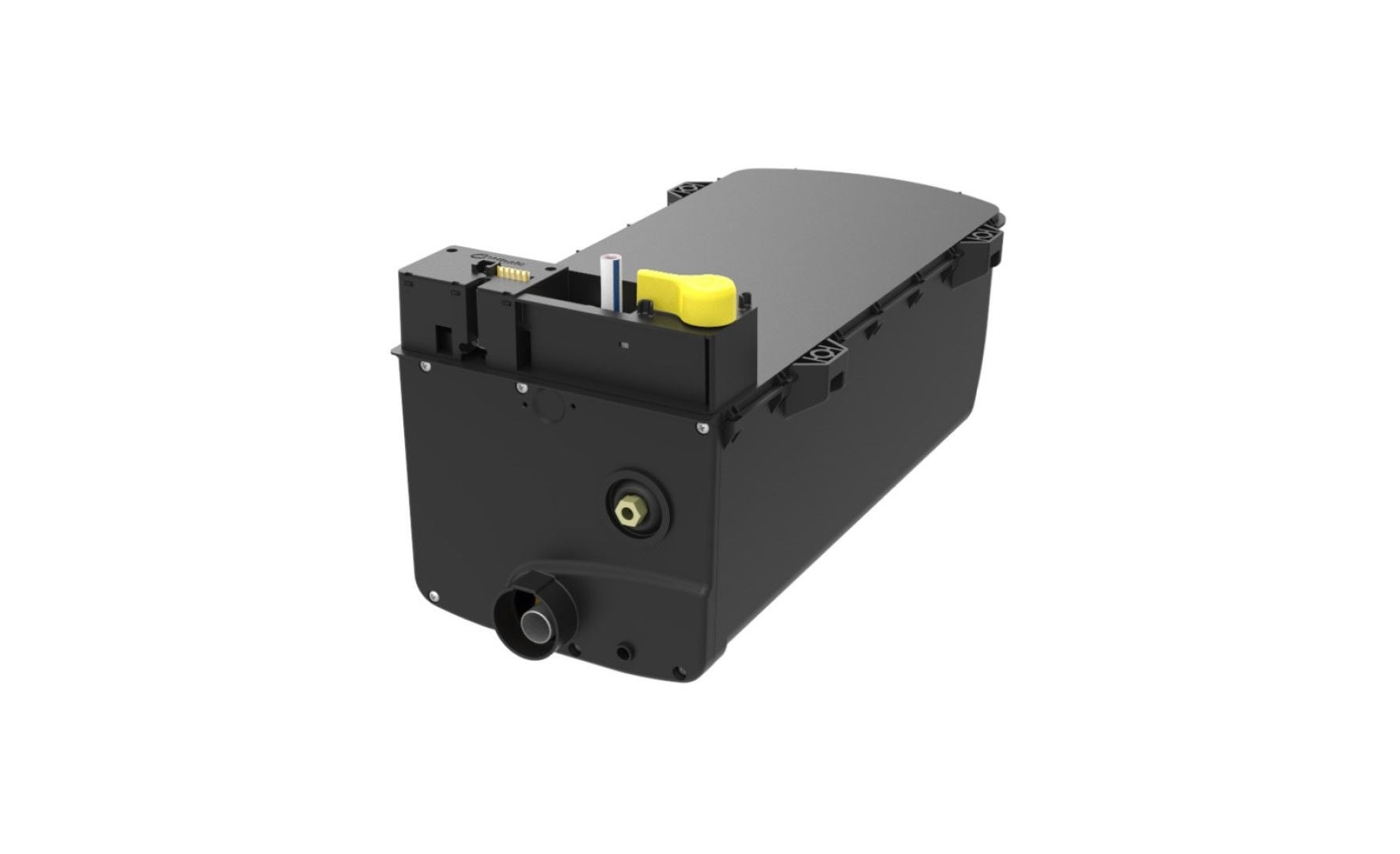

  • Expanse Gas water heater underfloor
  • Expanse Gas water heater onboard
  • Expanse Gas + Electricity water heater underfloor
  • Expanse Gas + Electricity water heater onboard

Downloads

Hybrid solutions - Datasheet

Discover the features and specifications of our Hybrid solutions for recreational vehicles.

Size
243 KB
Format
application/pdf
Download
