400 Volt
High Voltage Heater

Name: 400 Volt High Voltage Heater
Brand: Webasto
SKU: 400v-hvh

Jump to section

Benefits Product details Downloads Contact

HVH 50/70: Consistent heating performance

The electric High Voltage Heater (HVH) from Webasto with up to 5 or 7 kW heating power is the ideal solution for 400 Volt systems in electric cars, transporters and special vehicles. The innovative heating layer technology is firmly bonded onto the heat exchanger and has a large contact area for heating the coolant. Thus, the HVH 50/70 is designed to provide short heat-up times, precise temperature control and an efficiency of more than 95%.

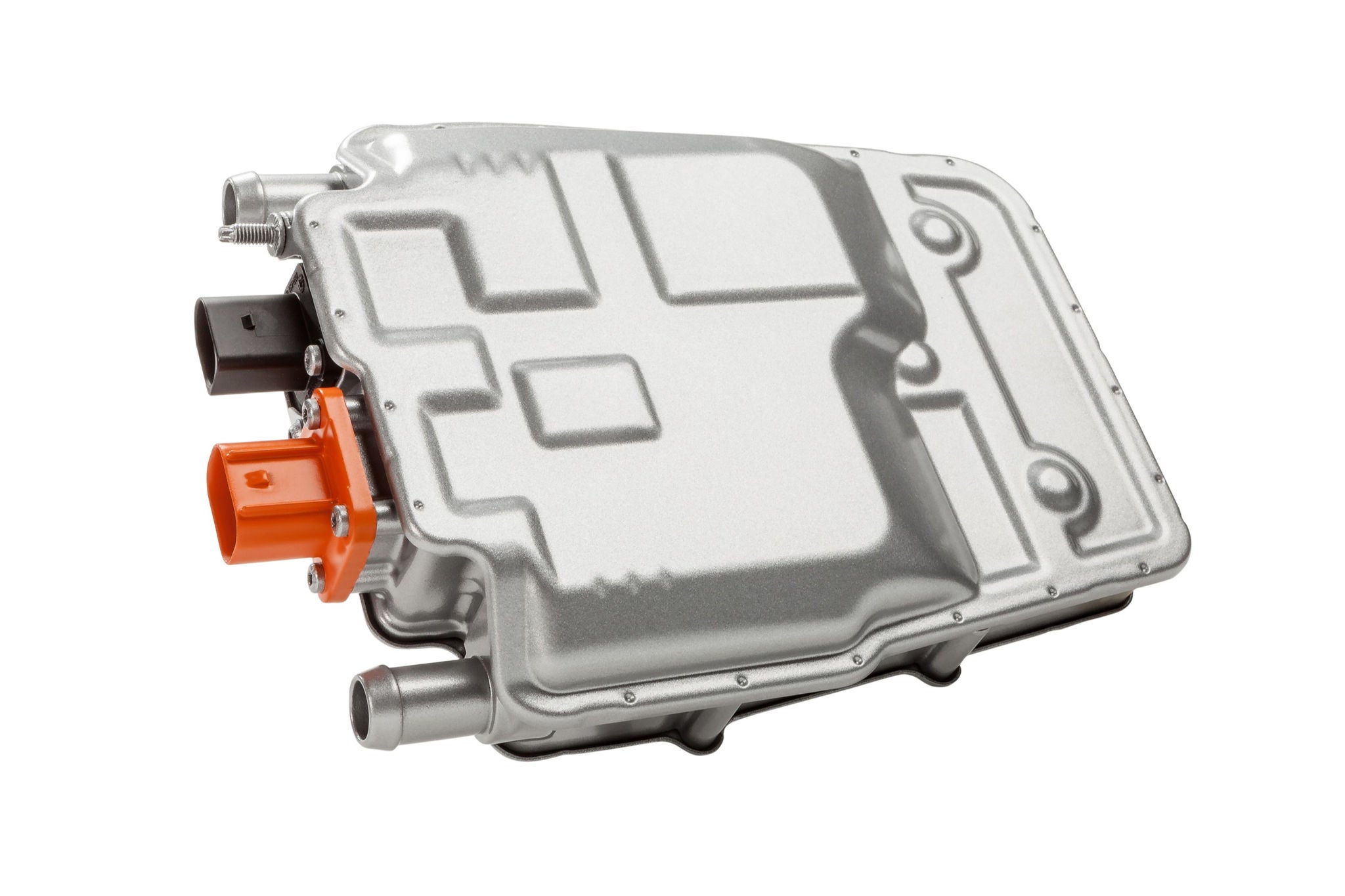

Top view Webasto system partner HVH 50/70 high-voltage coolant heater with aluminum housing, coolant ports and HV connector for battery thermal management.

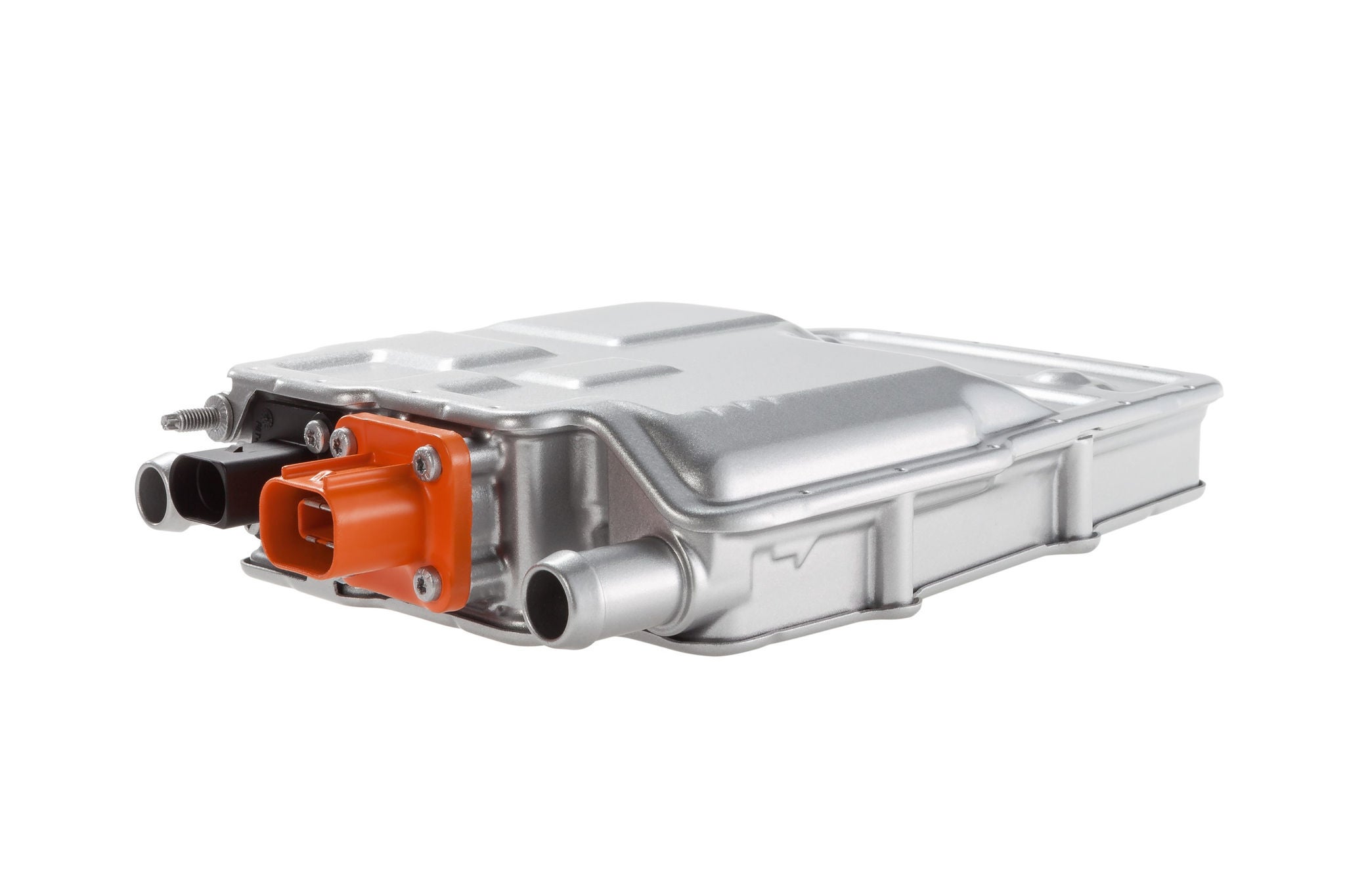

Webasto HVH 50/70 high-voltage heater side view with compact aluminum housing, coolant ports and orange HV connector for vehicle thermal management.

Benefits of the 400 Volt High Voltage Heater

Short heat-up times

The High Voltage Heater converts DC electrical power into heat with low conversion losses, supporting responsive heating performance.

Compact and versatile

With compact installation space requirements, our High Voltage Heater can be seamlessly integrated into any vehicle. Webasto offers a wide range of accessories and various certifications for the integration into different vehicles.

Consistent heating performance

Due to its voltage range of 100 to 490 Volt, the heaters allow for constant temperatures independent of voltage fluctuations.

Product details

Product specifications

Dimensions (L x W x H) in mm: 284 x 200 x 54
Weight: 1.95 kg
HV voltage range DC: 100-490 V
Service life: 15 years or 12,000 heating hours

Model overview

HVH 50 Gen 1.5: Heating performance up to 5 kW
HVH 70 Gen 1.5: Heating performance up to 7 kW
