Integrated heat exchangers
3.8 – 13 kW

Jump to section
Benefits Product details Downloads

Use existing engine heat for heating

Integrated heat exchangers from Webasto are ideal for heating the interior of minibuses and commercial vehicles. The waste heat from the running engine reaches the heat exchanger via the coolant circuit, where it is transferred to the air in the vehicle. The devices can be installed under the dashboard or the roof, for example.



A large selection of accessories allow a versatile use. The heat exchangers are very reliable and are characterized by a long service life. The Sydney and Stockholm models are ideal for smaller vehicles, while Houston, Toronto, Phoenix and Cyprus provide higher heating capacities and volume flows for larger interior spaces.

Benefits of integrated heat exchangers 3.8 – 13 kW

Efficient heating

The heat exchangers use the vehicle's existing coolant system and the waste heat from the switched-on engine.

Low power consumption

The heat exchangers are designed for maximum efficiency with low power consumption.

Flexible installation

Various installation positions and a wide range of accessories enable individual integration solutions.

Combined heating

For heating when the engine is switched off, the heat exchangers can be supplemented with fuel-powered heaters from Webasto.

Impressive heat output

With outputs from 13,000 BTU/h to 44,300 BTU/h, Webasto offers heat exchangers for a wide range of vehicles.

High volume flow

With a maximum air flow rate of the fan of up to 800 m3 per hour, the heat exchangers ensure optimum air distribution.

Product details

Product specifications



  • Heating capacities from 3.8 to 13 kW
  • Rated voltage: 12 V, Sydney, Houston, Phoenix and Cyprus also 24 V
  • Dimensions L x W x H (mm) / Weight (kg)
    • Sydney: 260 x 177 x 130 / 1.3

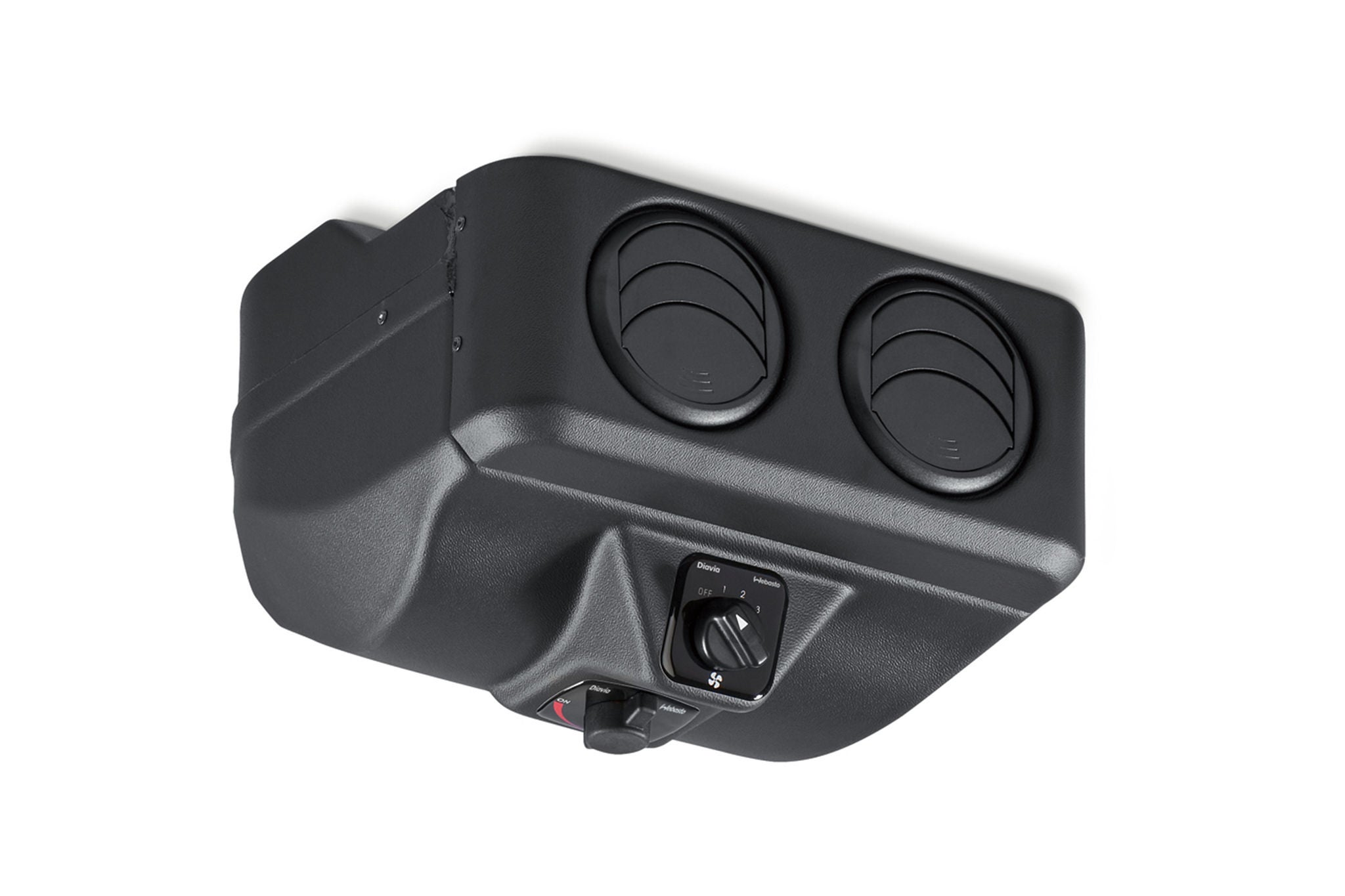

    • Stoccolma: 276 x 183 x 191 / 2.5

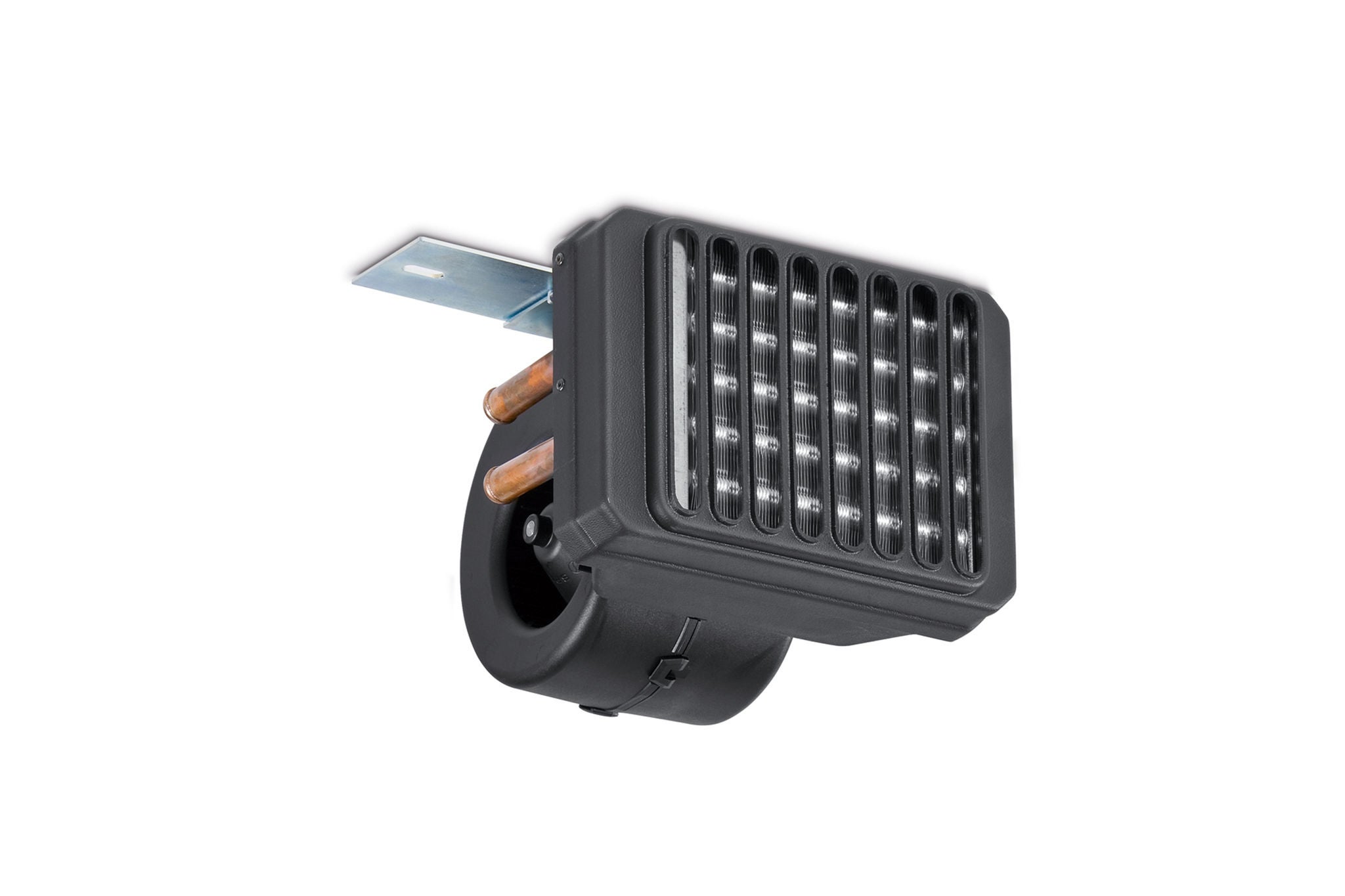

    • Houston: 230 x 220 x 175 / 2.8

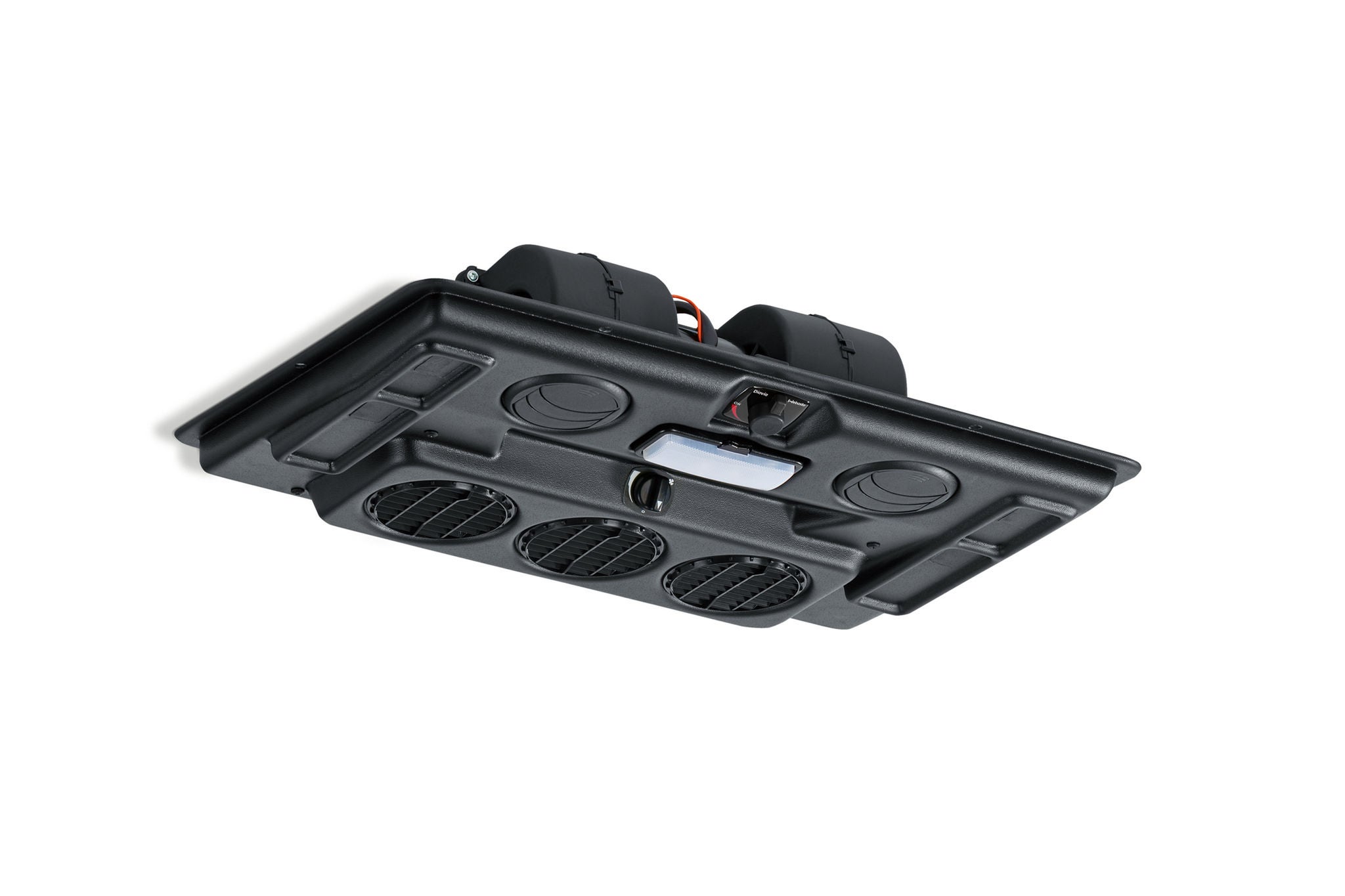

    • Toronto: 590 x 380 x 160 / 4.2
    • Phoenix: 385 x 233 x 128 / 3.0
    • Cyprus: 545 x 300 x 175 / 4.0

Model overview

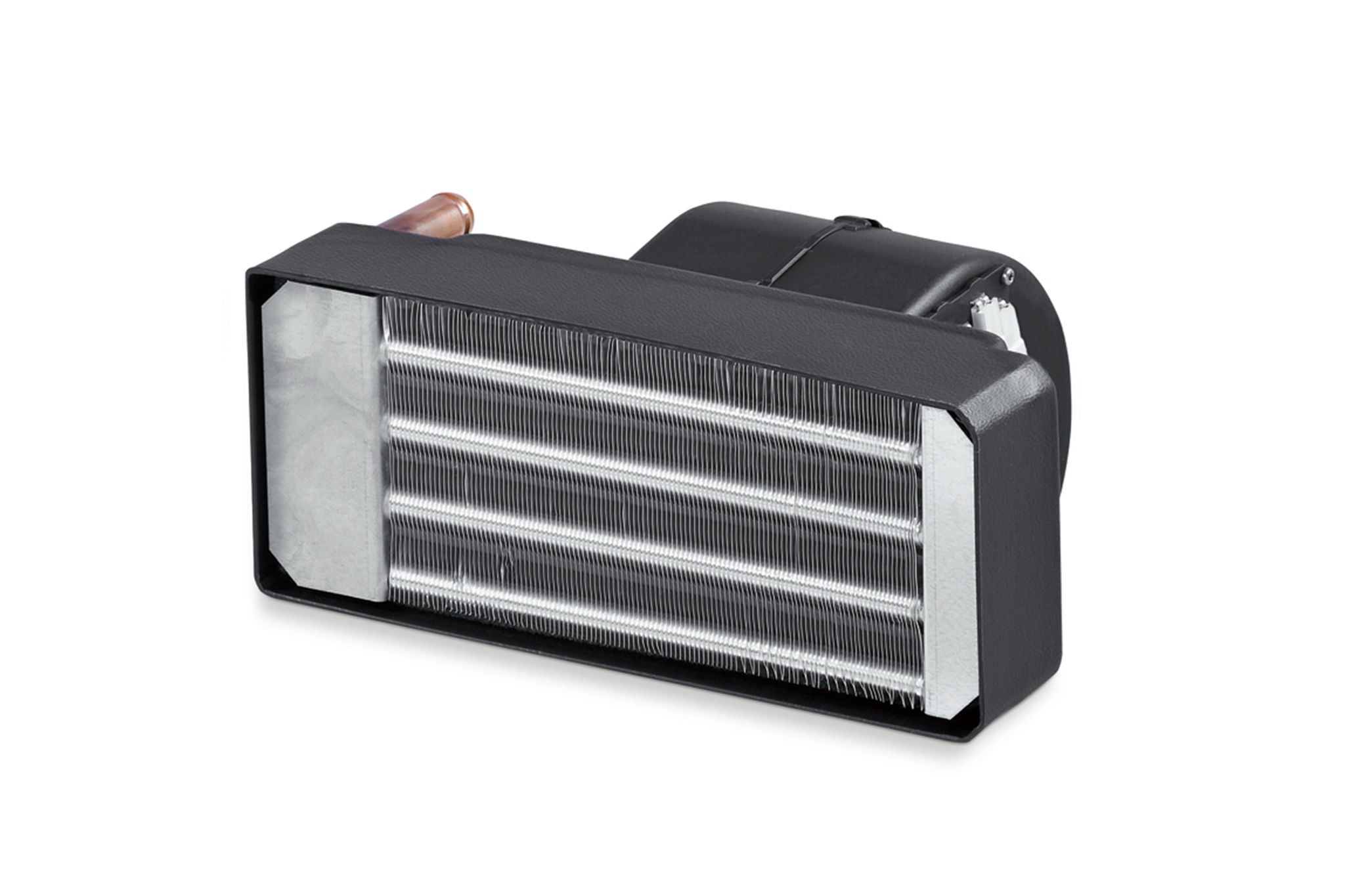

  • Sydney
  • Stoccolma
  • Houston
  • Toronto

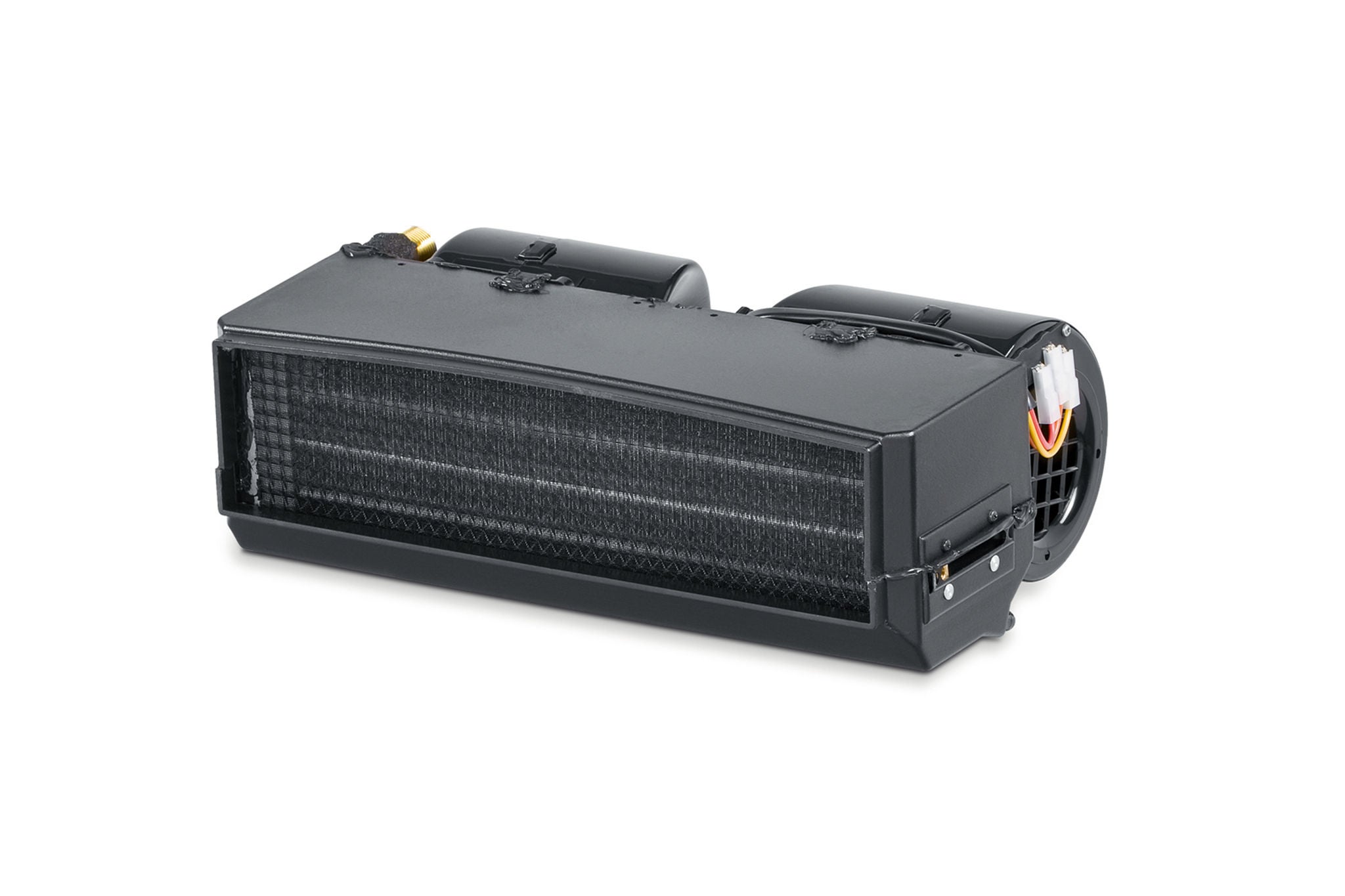

  • Phoenix

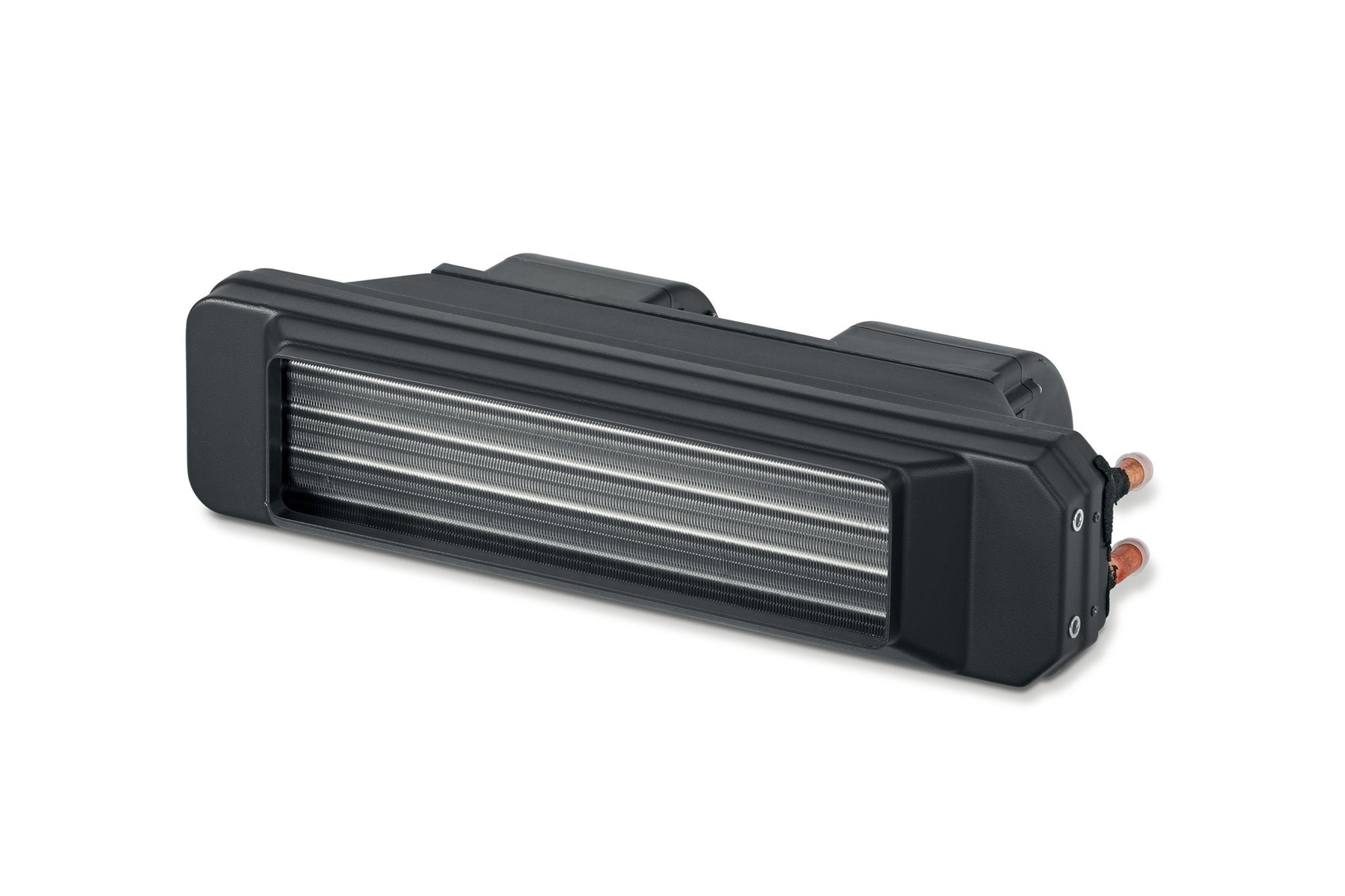

  • Cyprus
